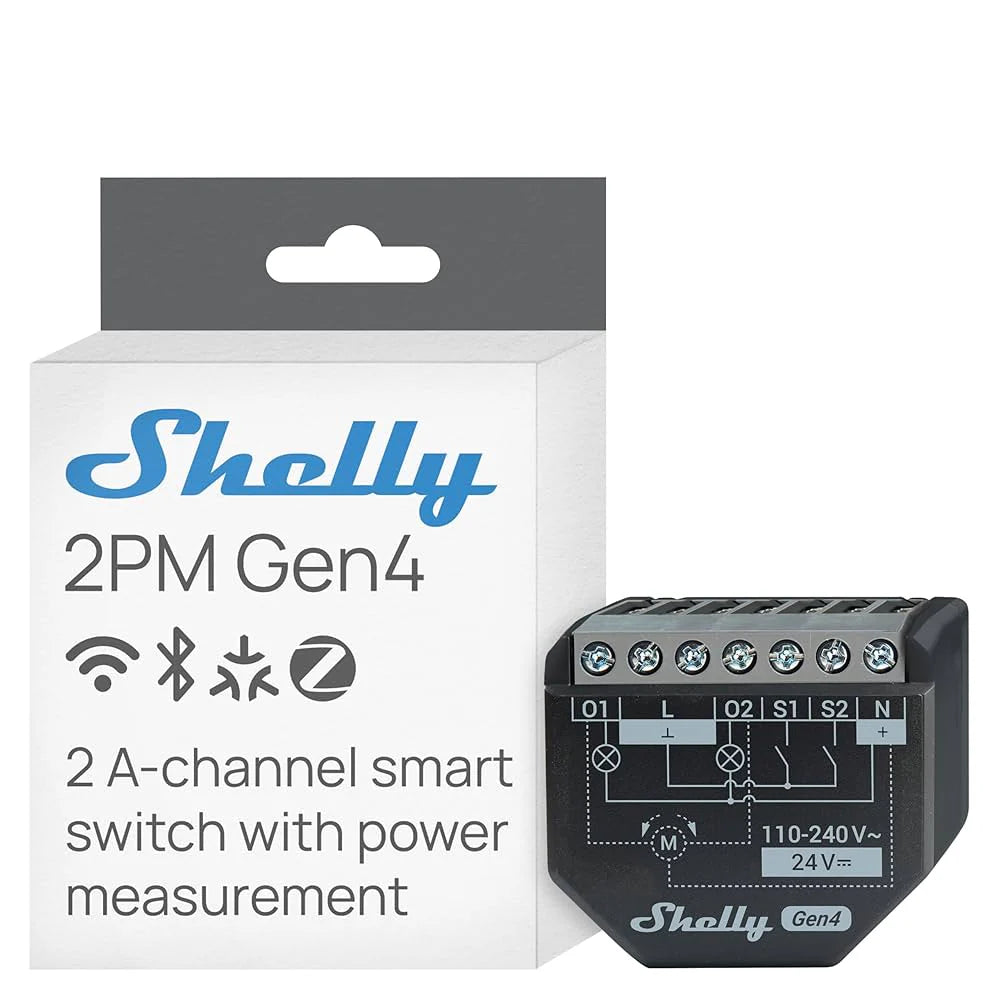

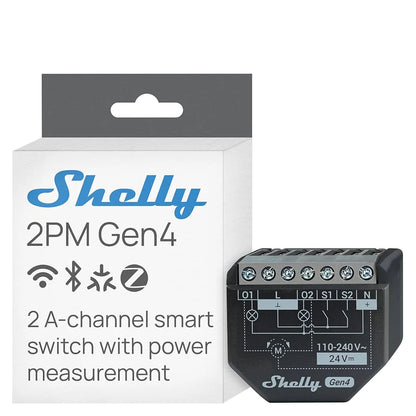

Shelly 2PM GEN4

Product Introduction

The Shelly 2PM Gen4 is a compact dual-channel smart relay with integrated power monitoring designed to automate and control two electrical circuits independently. Installed behind wall switches, sockets, or inside electrical junction boxes, the device allows users to remotely manage appliances, lighting, or motorised systems while monitoring real-time energy consumption.

The Gen4 generation introduces multiprotocol connectivity, enabling the device to operate using Wi-Fi, Zigbee, Bluetooth, or Matter. This allows seamless integration with a wide range of smart home ecosystems while giving users flexibility to choose the communication protocol that best suits their installation.

In addition to controlling two independent circuits, the relay also supports cover control, allowing automation of roller shutters, blinds, curtains, and other bi-directional AC motors. With built-in power measurement on each channel, homeowners can track energy usage and optimise electricity consumption across connected devices.

Key Features

Dual-Channel Smart Control
Controls two separate electrical circuits or devices independently from a single smart relay.

Integrated Power Monitoring
Measures electricity consumption for each channel, providing real-time energy usage data.

Multiprotocol Connectivity
Supports Wi-Fi, Zigbee, Bluetooth, and Matter for flexible smart home integration.

Cover and Blind Automation
Designed to control bi-directional motors used in curtains, roller shutters, blinds, and awnings.

Remote Control and Scheduling
Control devices remotely and create automation schedules using the Shelly Smart Control app.

Compact Retrofit Installation
Small form factor allows installation behind switches or inside electrical boxes with limited space.

Smart Home Integration

The Shelly 2PM Gen4 integrates with multiple smart home ecosystems and automation platforms.

Supported integrations include:

• Shelly Smart Control App
• Amazon Alexa
• Google Home
• Apple Home (via Matter)
• Home Assistant
• MQTT and REST API automation systems

Once connected, the relay can participate in automation scenarios such as:

• Controlling two lighting circuits independently
• Automating blinds or curtain motors
• Monitoring energy usage of connected appliances
• Triggering scenes based on schedules or sensors

Technical Specifications

Product Type: Dual-Channel Smart Relay with Power Monitoring
Model: Shelly 2PM Gen4
Channels: 2 independent outputs
Connectivity: Wi-Fi 2.4 GHz, Zigbee, Bluetooth, Matter
Power Supply: 110–240V AC
Maximum Switching Current: Up to 10A per channel
Power Monitoring: Real-time energy measurement per channel
Processor: Advanced multiprotocol wireless MCU
Installation: Behind switches, sockets, or junction boxes
Operating Temperature: −20 °C to 40 °C

What’s in the Box

Shelly 2PM Gen4 smart relay
Quick start guide
