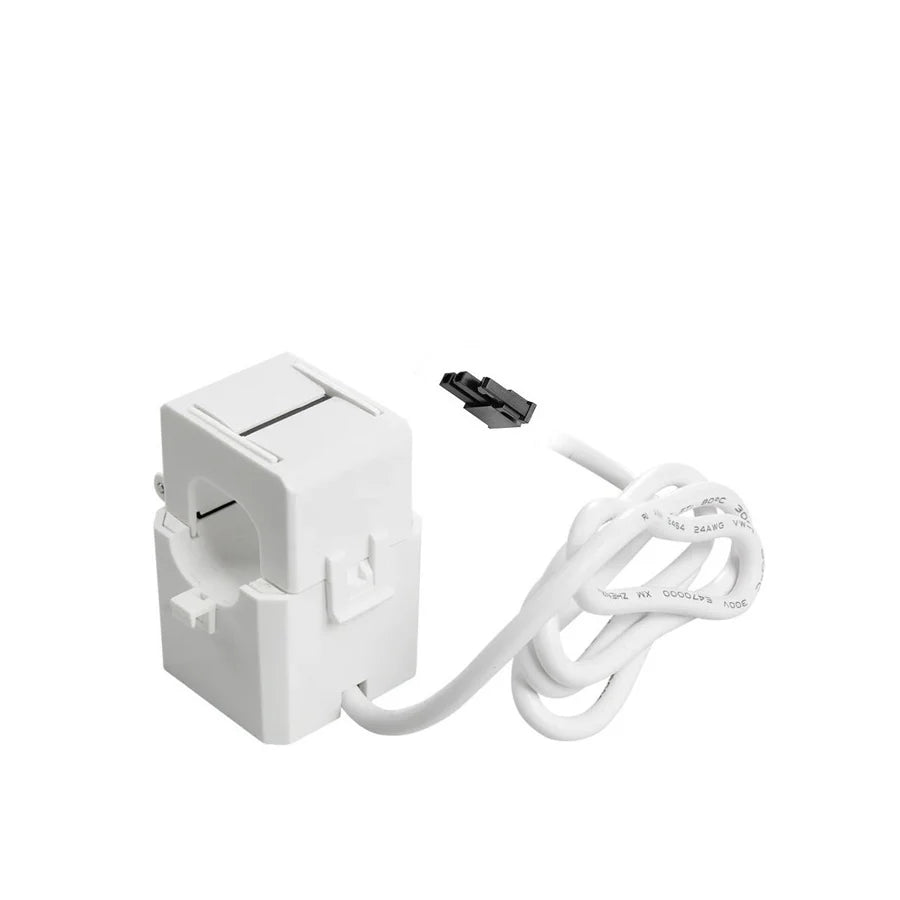

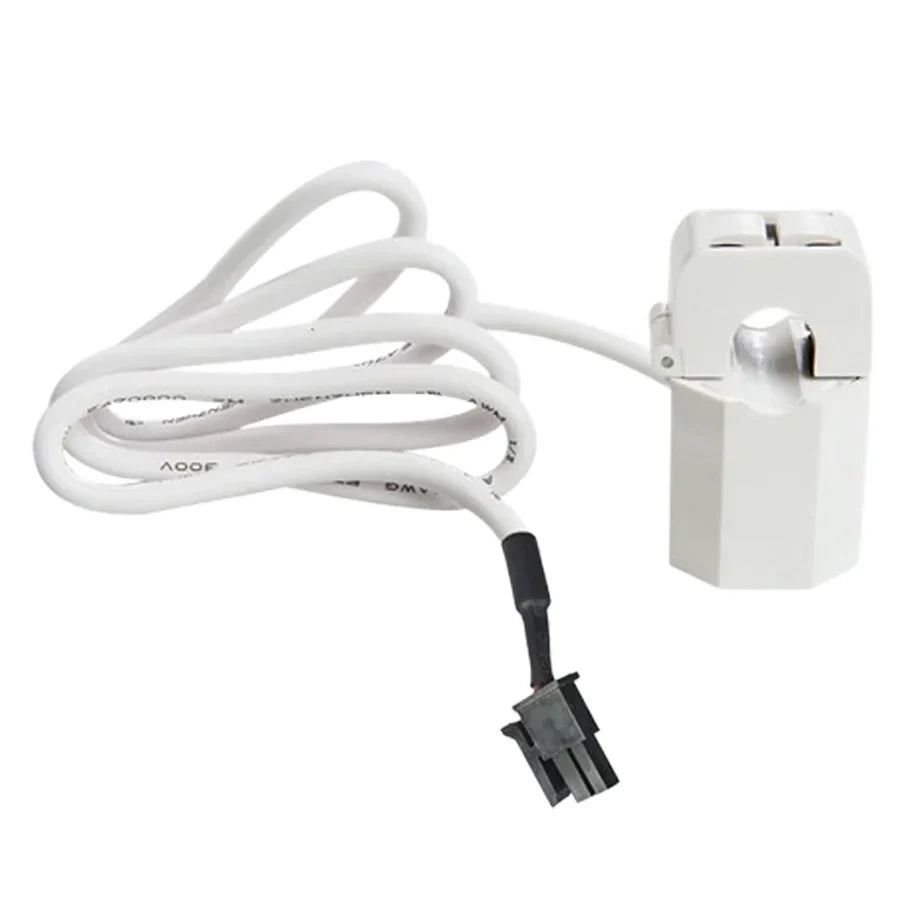

Shelly 50A CLAMP EM GEN3

Product Introduction

The Shelly 50A Clamp EM Gen3 is a split-core current transformer designed to measure electrical current in conjunction with the Shelly EM Gen3 smart energy meter. The clamp is placed around a live electrical conductor to measure current flow without requiring direct electrical contact, enabling safe and accurate energy monitoring.

When connected to the Shelly EM Gen3 module, the clamp allows users to track electricity consumption of individual circuits or appliances in real time through the Shelly Smart Control platform or compatible automation systems. This makes it ideal for monitoring household circuits, specific appliances, or sections of a building’s electrical system.

The clamp’s split-core design allows it to open and close around an existing cable, making installation simple without disconnecting wiring. With accurate current measurement and compact construction, it is commonly used for energy monitoring installations inside electrical distribution boards.

Key Features

Contactless Current Measurement
Measures electrical current by clamping around a conductor, allowing safe monitoring without direct electrical connection.

Designed for Shelly EM Gen3
Specifically built for use with the Shelly EM Gen3 smart energy meter for accurate energy monitoring.

Split-Core Clamp Design
Opens and closes around existing electrical cables for easy installation without rewiring.

Up to 50A Measurement Range
Capable of measuring electrical loads up to 50 A on a single monitored circuit.

High Measurement Accuracy
Provides approximately 1% measurement accuracy for reliable energy monitoring data.

Compact Installation
Small form factor makes it suitable for installation inside electrical distribution boards or junction boxes.

Smart Home Integration

The Shelly 50A Clamp EM Gen3 functions as an accessory to the Shelly EM Gen3 energy meter.

When connected to the EM Gen3 module, it enables energy monitoring through:

• Shelly Smart Control App
• Home Assistant
• MQTT and REST API automation systems
• Energy monitoring dashboards

Common monitoring applications include:

• Tracking power usage of specific circuits
• Monitoring appliances such as geysers or air conditioners
• Measuring overall home electricity consumption
• Energy usage analysis for optimisation and cost reduction

Technical Specifications

Product Type: Current Transformer (CT) Clamp
Compatibility: Shelly EM Gen3 energy meter
Measurement Range: Up to 50 A
Measurement Accuracy: Approx. ±1%
Internal Diameter: Approx. 11 mm
Rated Primary Current: 50 A
Rated Secondary Current: 16.67 mA
Core Type: Ferrite split-core transformer
Electrical Strength: 3000 VAC insulation rating
Installation: Clamp-on installation around conductor cable

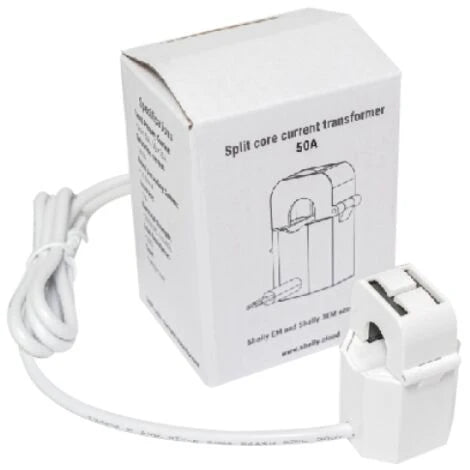

What’s in the Box

Shelly 50A Clamp EM Gen3 current transformer
Connection cable for Shelly EM Gen3
