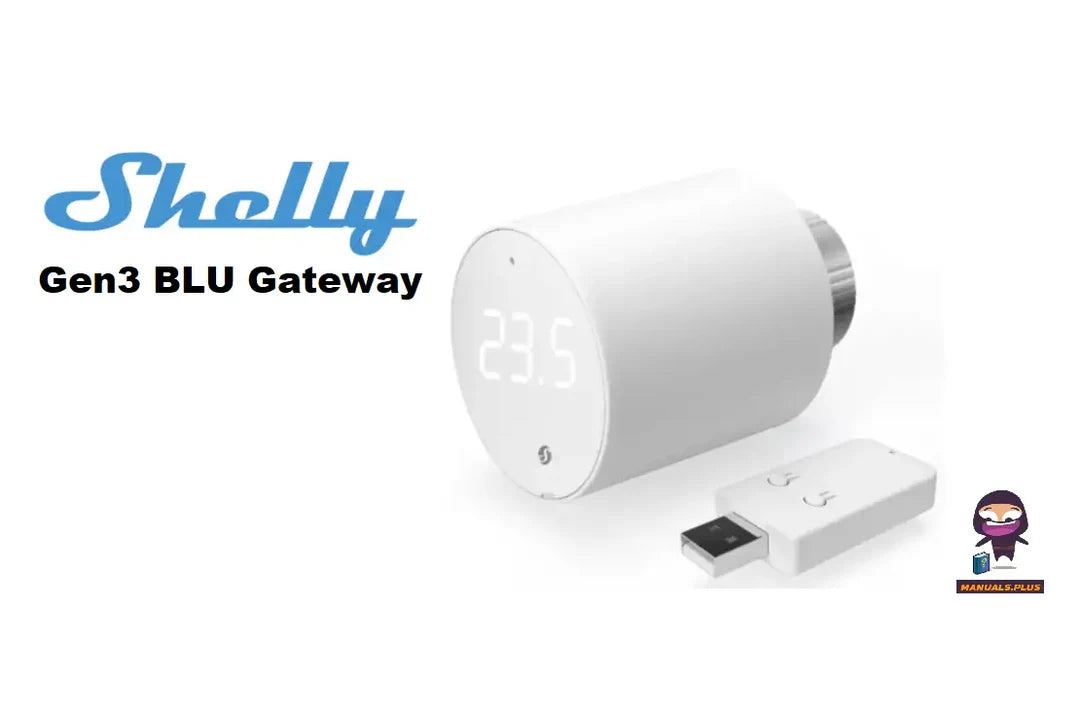

Shelly BLU GATEWAY

Product Introduction

The Shelly BLU Gateway is a compact USB-powered device that acts as a bridge between Shelly Bluetooth (BLU) devices and the broader Shelly smart home ecosystem. It captures signals from Bluetooth sensors and controllers and transmits the data over Wi-Fi, allowing them to communicate with the Shelly Smart Control platform and other connected devices.

This gateway is particularly useful when using Shelly BLU sensors with older Shelly Gen-1 devices that do not have built-in Bluetooth functionality. By simply plugging the gateway into a USB power adapter, users can integrate Bluetooth devices into their smart home without replacing existing relays or installing additional hardware.

The device supports both cloud and local automation, enabling smart home systems to trigger actions instantly based on signals from Bluetooth sensors such as motion detectors, door sensors, and environmental monitors.

Key Features

Bluetooth to Wi-Fi Bridge
Receives Bluetooth signals from Shelly BLU devices and sends them to the cloud or local automation system.

No Hub Required
Connects directly to your Wi-Fi network without the need for a dedicated smart home hub.

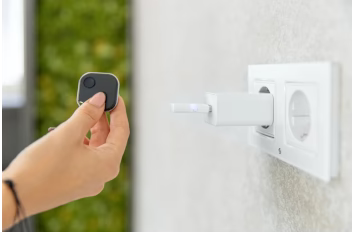

Simple Plug-and-Play Installation

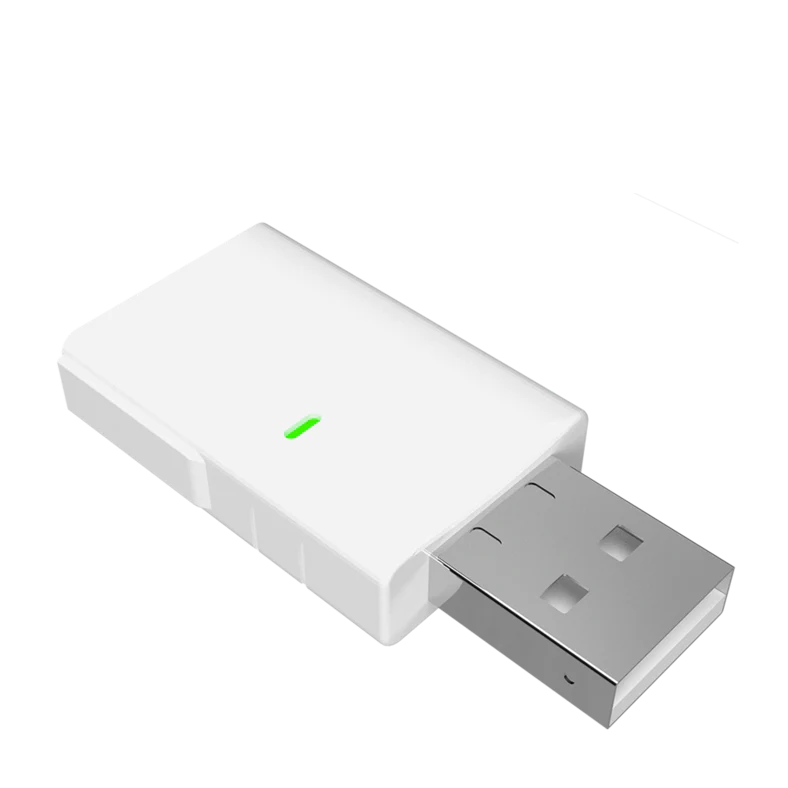

USB-A dongle design allows easy installation by plugging into a USB power adapter.

Supports Shelly BLU Ecosystem
Works with devices such as BLU Door/Window sensors, BLU Motion sensors, and BLU buttons.

Local Automation and Scripting
Supports scripting and MQTT communication for advanced smart home integrations.

Extended Network Coverage
Helps extend communication between Bluetooth devices and Wi-Fi networks within the smart home environment.

Smart Home Integration

The Shelly BLU Gateway integrates with the Shelly ecosystem and other automation platforms.

Supported integrations include:

• Shelly Smart Control App
• Home Assistant
• MQTT automation systems
• REST API smart home integrations

Typical automation scenarios include:

• Receiving alerts when BLU door sensors detect an opening
• Triggering lights when motion sensors detect movement
• Activating scenes using BLU smart buttons
• Monitoring environmental data from Bluetooth sensors

Technical Specifications

Product Type: Bluetooth to Wi-Fi Gateway
Model: Shelly BLU Gateway (GWF-KZ01)
Connectivity: Wi-Fi 2.4 GHz + Bluetooth 4.2
Power Supply: 5 V DC via USB-A port
Power Consumption: <1 W
Wi-Fi Range: Up to 30 m indoors / 50 m outdoors
Bluetooth Range: Up to 20 m indoors / 30 m outdoors
Processor: ESP32
Flash Memory: 4 MB
Operating Temperature: −20 °C to 40 °C
Dimensions: 45 × 20 × 8 mm
Weight: Approx. 5 g

What’s in the Box

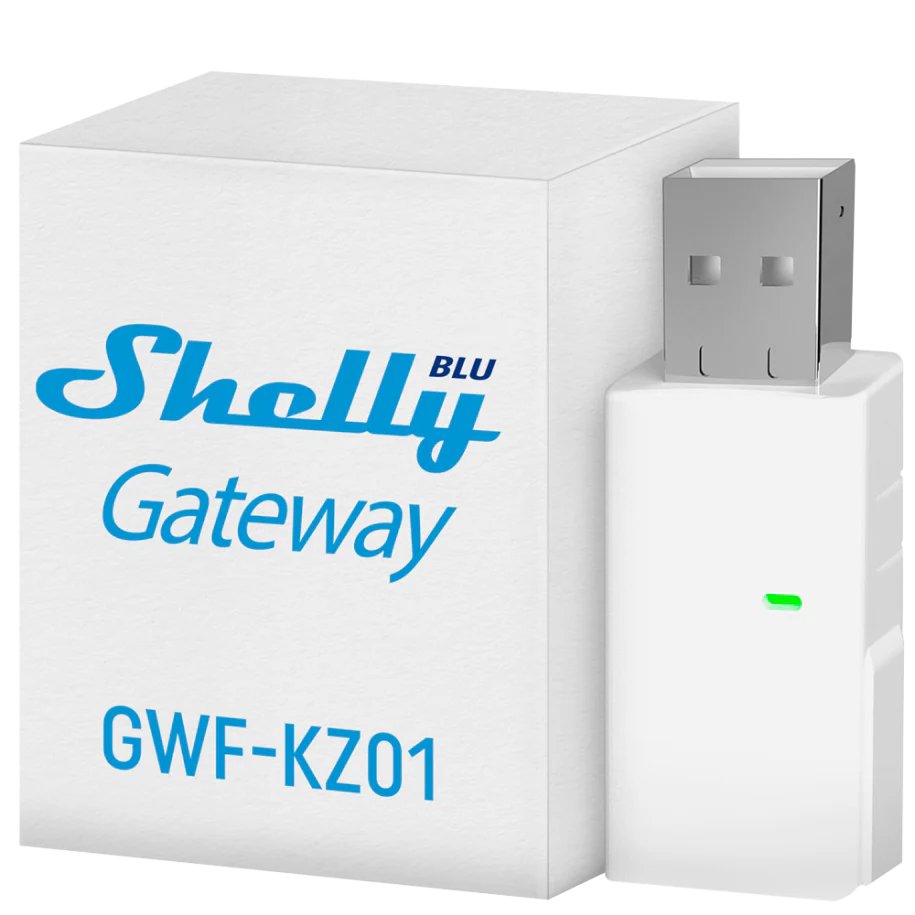

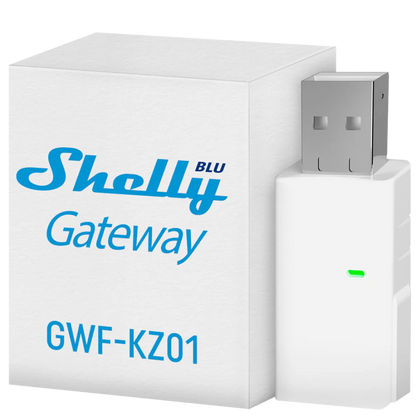

Shelly BLU Gateway USB device
Quick start guide
