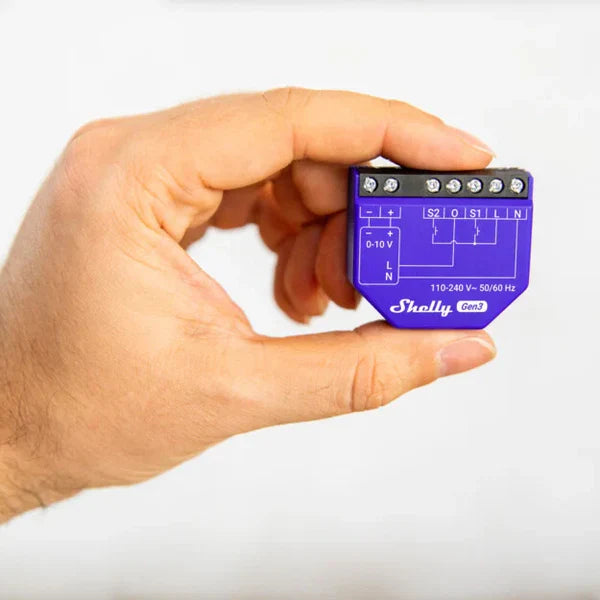

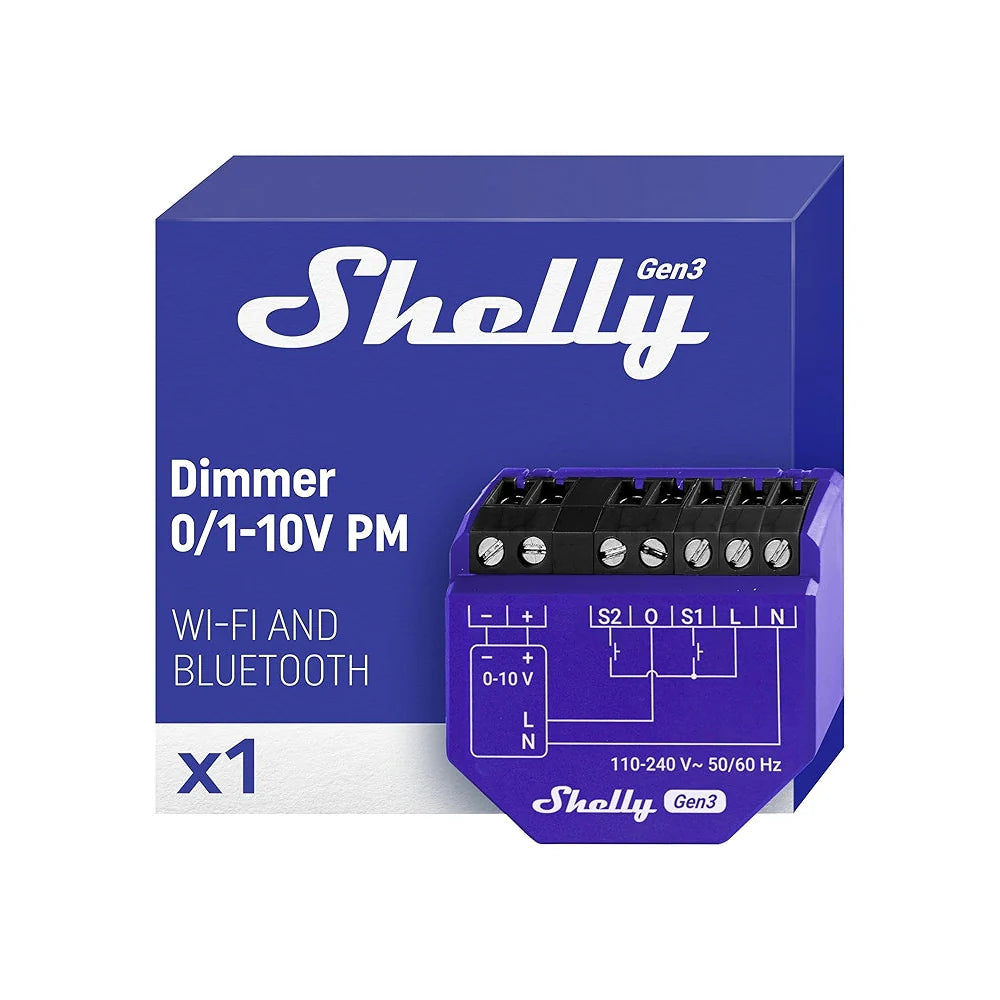

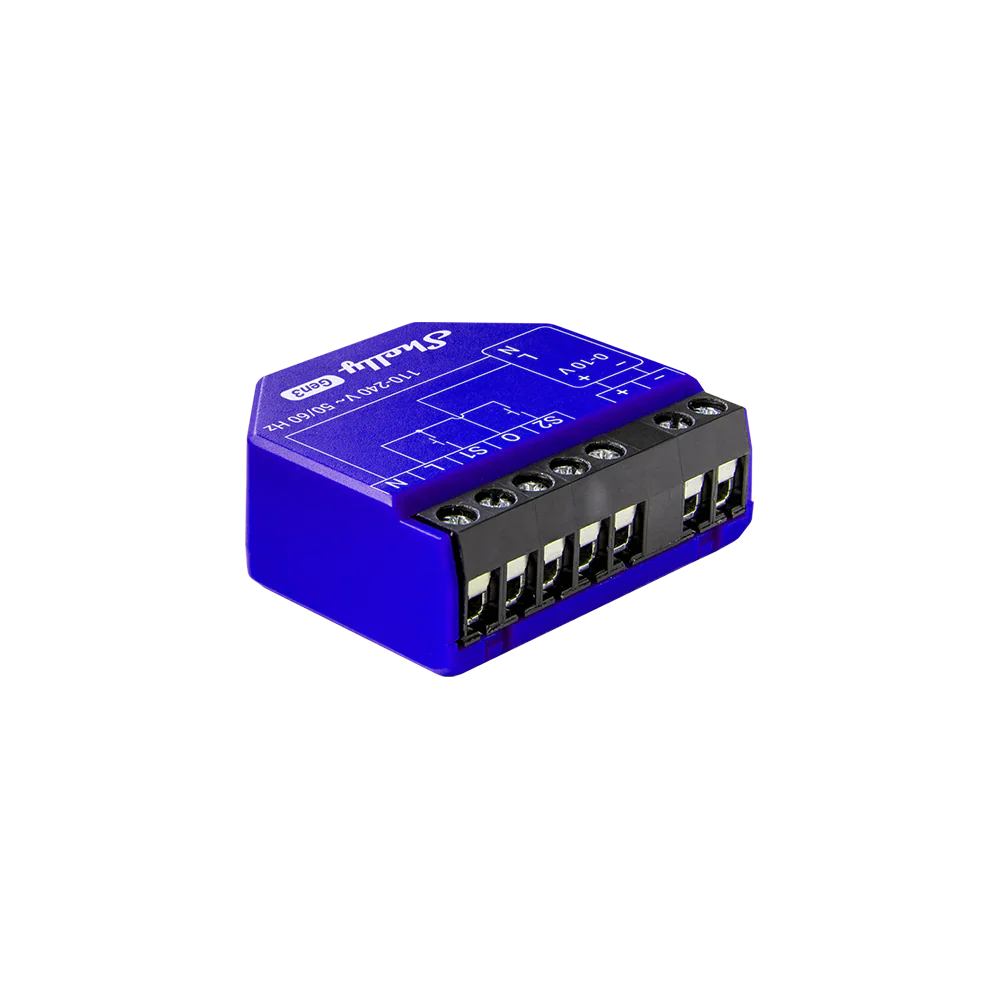

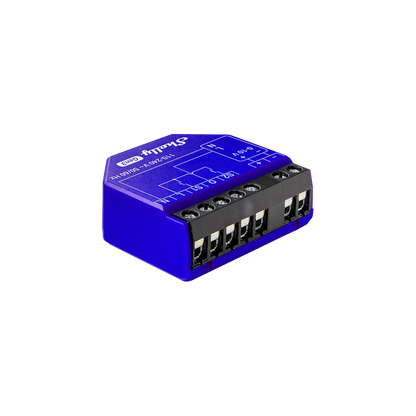

Shelly DIMMER 01-10V GEN3

Product Introduction

The Shelly Dimmer 0/1-10V Gen3 is a smart dimming controller designed to manage lighting systems and other devices that use 0-10V or 1-10V control signals. Installed behind wall switches or inside electrical boxes, the device allows users to remotely adjust brightness levels and automate lighting scenes using the Shelly Smart Control platform or compatible smart home systems.

Unlike traditional dimmers that directly control the load, this device outputs a 0-10V control signal, making it ideal for LED drivers, dimmable lighting systems, motors, valves, and other automation equipment that rely on voltage-based dimming.

With built-in Wi-Fi and Bluetooth connectivity, the dimmer connects directly to your network without requiring a separate hub. This enables remote control, automation scheduling, and integration with modern smart home platforms while maintaining manual control through existing wall switches.

Key Features

0-10V and 1-10V Dimming Support
Compatible with a wide range of dimmable drivers and systems using industry-standard 0-10V or 1-10V control signals.

Smart Lighting Control
Adjust brightness levels remotely using a smartphone, automation scenes, or schedules.

Wi-Fi and Bluetooth Connectivity
Connects directly to a Wi-Fi network and supports Bluetooth for fast setup and device communication.

Integrated Power Monitoring
Measures voltage, current, and energy consumption for better insight into power usage.

Automation and Scheduling
Create routines, scenes, and automation triggers to automatically control lighting levels.

Compact Retrofit Installation
Small module fits behind wall switches or inside electrical enclosures for easy upgrades.

Smart Home Integration

The Shelly Dimmer 0/1-10V Gen3 integrates with multiple smart home ecosystems and automation platforms.

Supported integrations include:

• Shelly Smart Control App
• Amazon Alexa
• Google Home
• Home Assistant
• MQTT and REST API automation systems

Once connected, the dimmer can participate in automation scenarios such as:

• Automatically adjusting lighting brightness throughout the day
• Creating mood lighting scenes for different rooms
• Scheduling dimming levels for energy savings
• Integrating lighting with motion or presence sensors

Technical Specifications

Product Type: Smart 0-10V / 1-10V Dimming Controller
Model: Shelly Dimmer 0/1-10V PM Gen3
Connectivity: Wi-Fi 2.4 GHz + Bluetooth 4.2
Power Supply: 110–230 V AC ±10%
Control Output: 0-10V / 1-10V DC signal
Maximum Switching Voltage: 240 V
Maximum Switching Current: 13 A
Maximum Control Current: 35 mA
Power Consumption: <1.5 W
Operating Temperature: −20 °C to 40 °C
Dimensions: Approx. 43.5 × 38.5 × 17 mm

What’s in the Box

Shelly Dimmer 0/1-10V Gen3 smart dimmer
Quick start guide
